Ford F350/450 Rear Dually 2017 – 2024 BlackLine

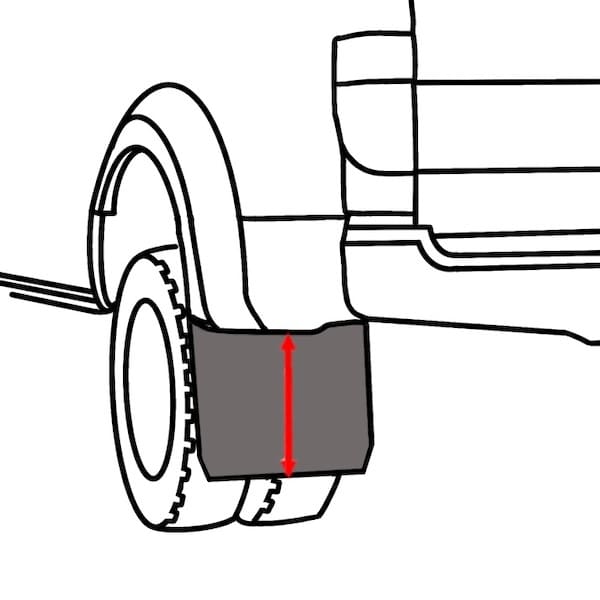

These Ford dually mud flaps are a drill-less installation. They are approximately 20 inches wide by 3/8 inch thick and come in three lengths. Short length will hang 13″ below the rear fender, Standard length will hang 15″ below the rear fender, Long length will hang 17″ below the rear fender. It is best to measure your truck to figure out what length will work for you. Measure from the ground up to the painted surface of the rear fender and minus off the lengths (13, 15, 17) to determine how far off the ground the flaps will hang. We recommend to be at least 7″ off the ground to keep from backing up against curbs and parking guards.

Application: REAR of all Dually trucks F350 F450 F550 2017 thru 2024.

Mounting: Duraflap mounting hardware is custom made to be used on the Ford Aluminum body truck.  Our drill-less Mudflaps are custom designed to utilize existing factory holes and other mounting points available on your truck.

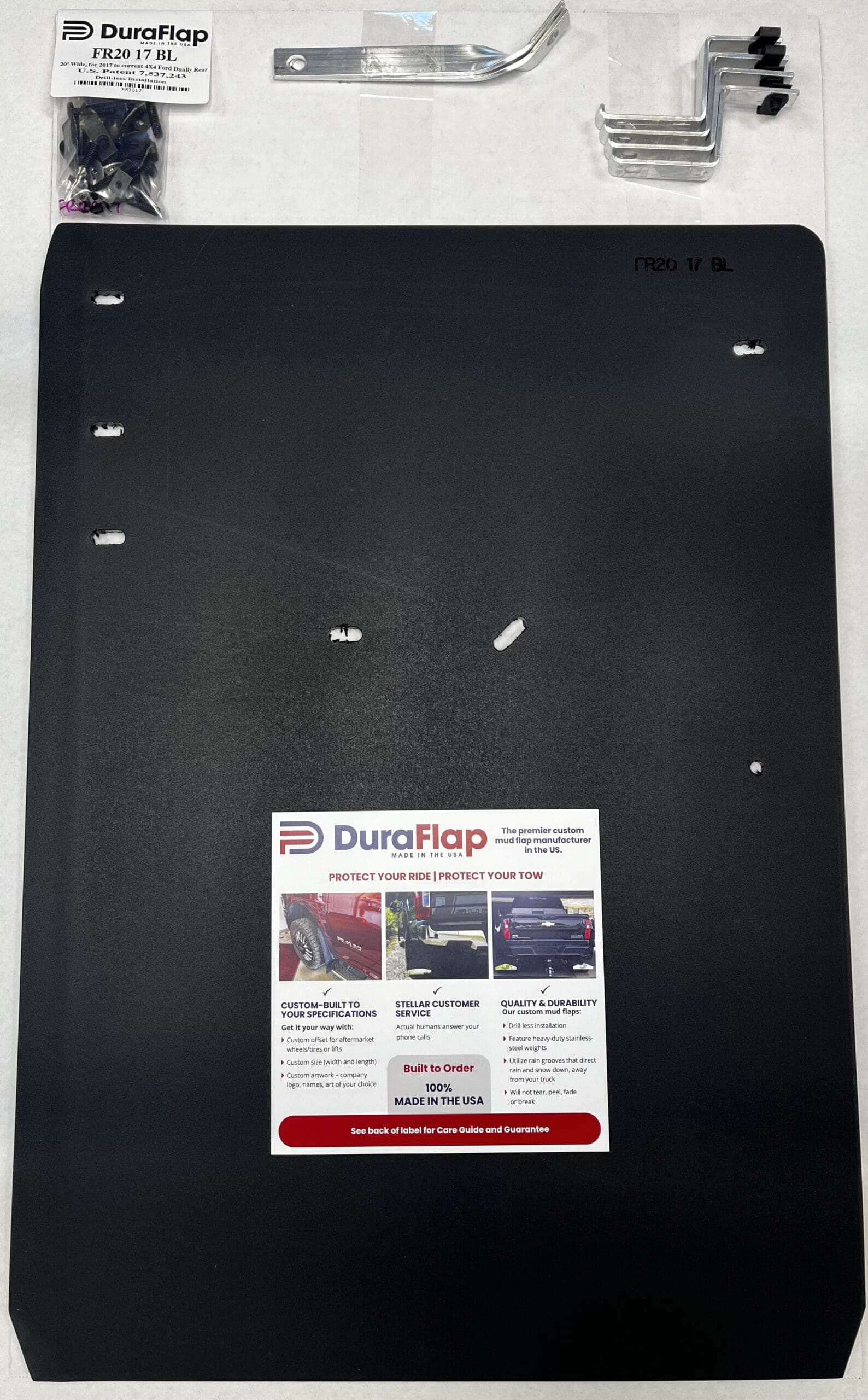

Hardware: All required hardware and brackets are supplied with these mud flaps.

Serviceability: Maximum protection available for dually trucks. This Mudflap is pre-drilled and requires no drilling of additional holes in your truck. Allows for easy & precise alignment.

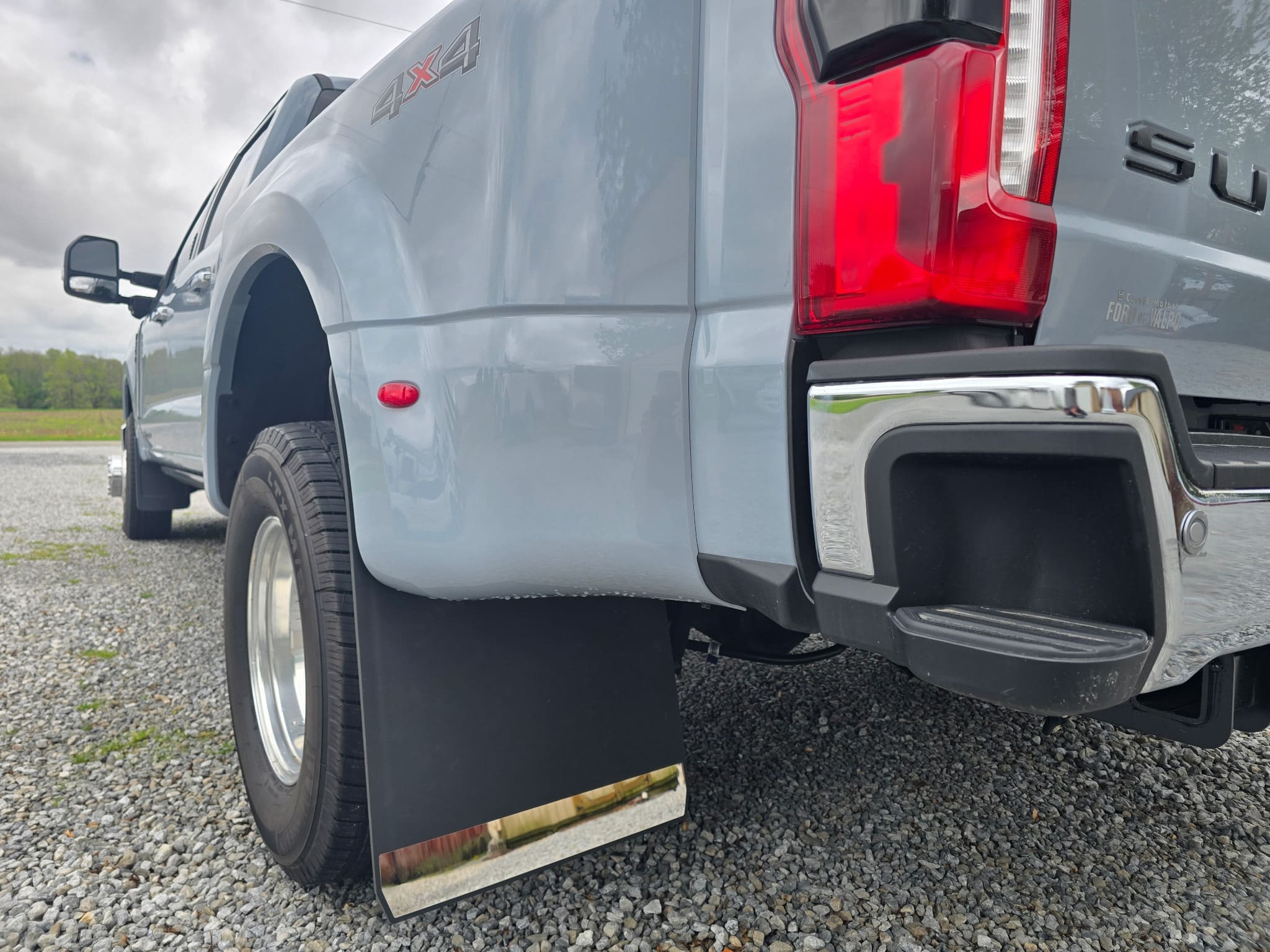

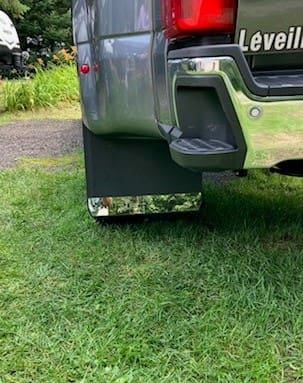

We suggest ordering the dually mud flaps with the stainless weights across the bottom.  The weights will help to prevent these wide mud flaps from taking a curl over years of highway driving.

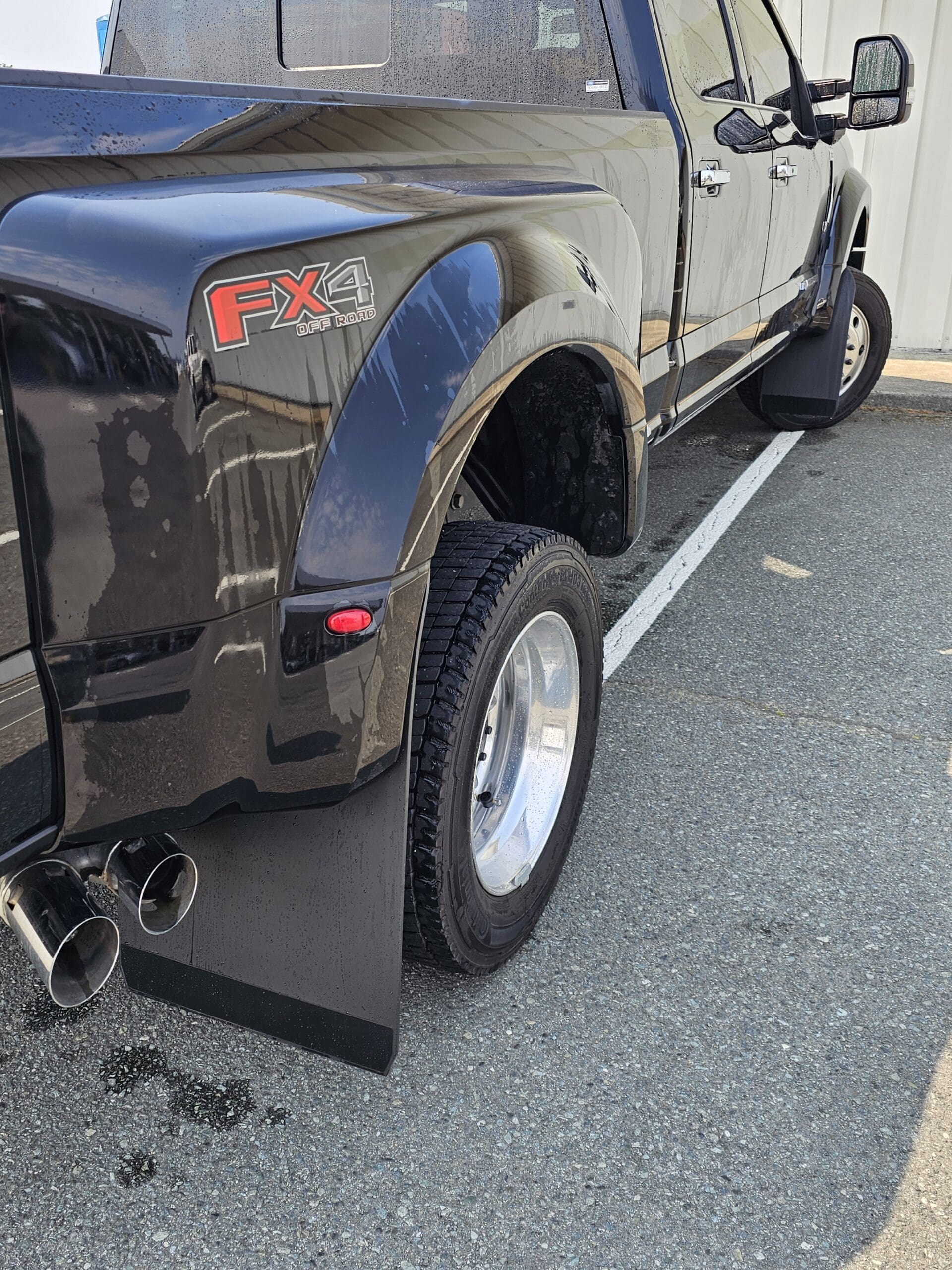

You will also want to make sure your flaps are at least 2 to 3″ away from your exhaust pipe.  If not, it will have to be moved.  We do offer a stand off bracket to drill into the exhaust pipe that keeps the mud flap from touching it.  Let us know when ordering if you need this.
